Description

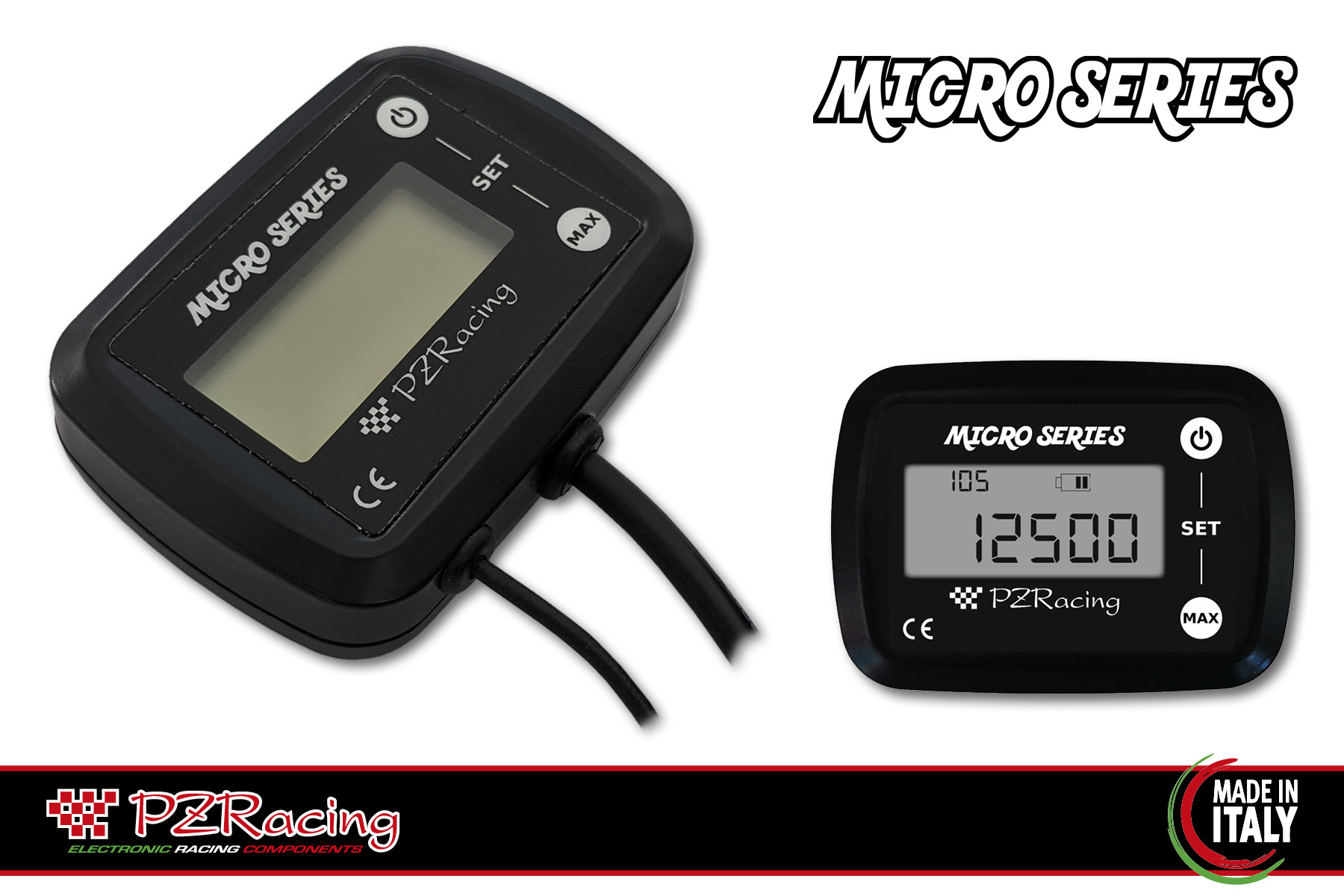

Its very small size, internal batteries, inductive detection of engine revolutions and M6 screw temperature sensor make the tachometer usable on any type of vehicle, from minibikes to sports bikes.
In addition to displaying the engine revolutions in real time, Multy stores the number of engine operating hours, a useful function for engine maintenance. The hour meter can be reset.
The M6 screw temperature sensor can be used with one of the optional fittings (SSWF12: 12mm, SSWF17: 17mm, SSWF25: 25mm) or on any threaded hole.
Multy also stores the maximum values of engine rpm and temperature reached during the session.
TECHNICAL FEATURES:
– Range RPM: 0 ย 17000 rpm (setting pulse 2)
– Resolution: 100rpm
– Range hour meter: 0 ย 999 hours
– RPM cable length: 150cm (you can shorten the cable if necessary)
– Temperature range: 0 ย 120 ยฐC (32ยฐF ย 230ยฐF)
– Temperature connector cable length: 150cm
– Temperature sensor cable length: 60cm
– Batteries: 2 x AAA
– Automatic shut down
– Anti impact container
– Water resistant
– Dimensions: 69,5ร50,5x21mm
– Weight: 62gr
Compatible with
UNIVERSAL
Manual
https://www.pzracing.it/manuals/Multy_MT1000.pdf
Other Documentation
