Description
Developed to match our upper triple clamp and built with the proven technology of our GP model.
Technical description:

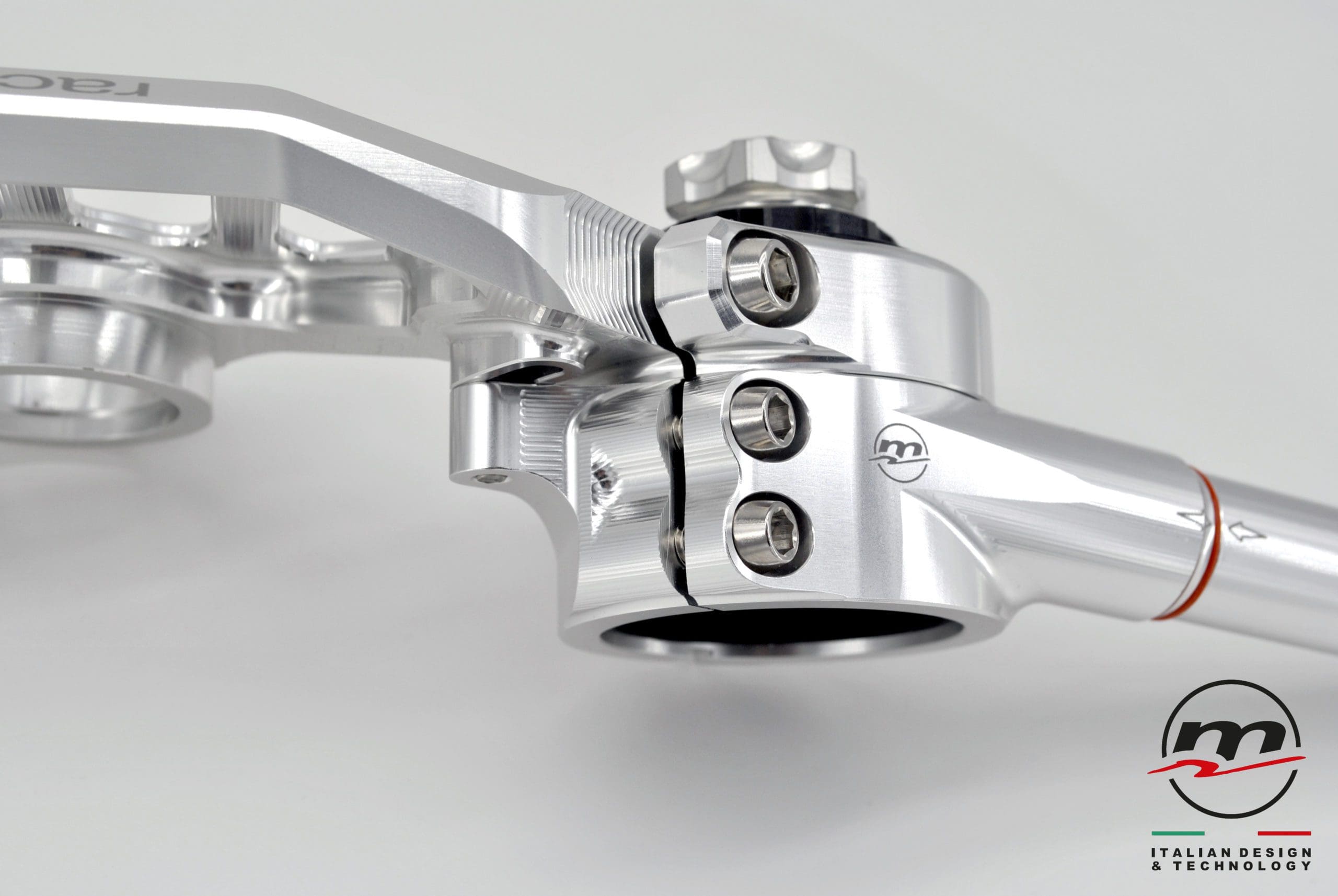

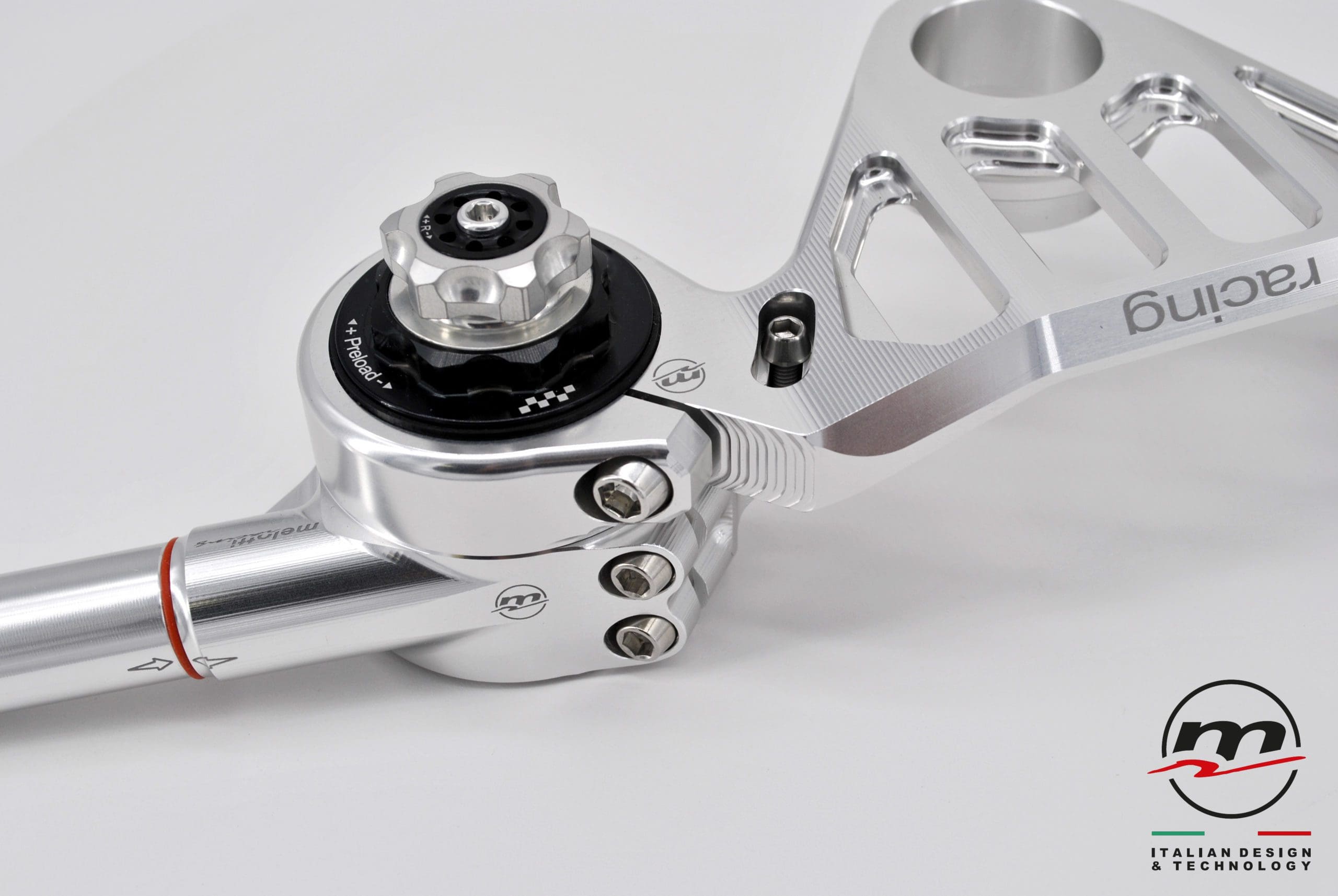

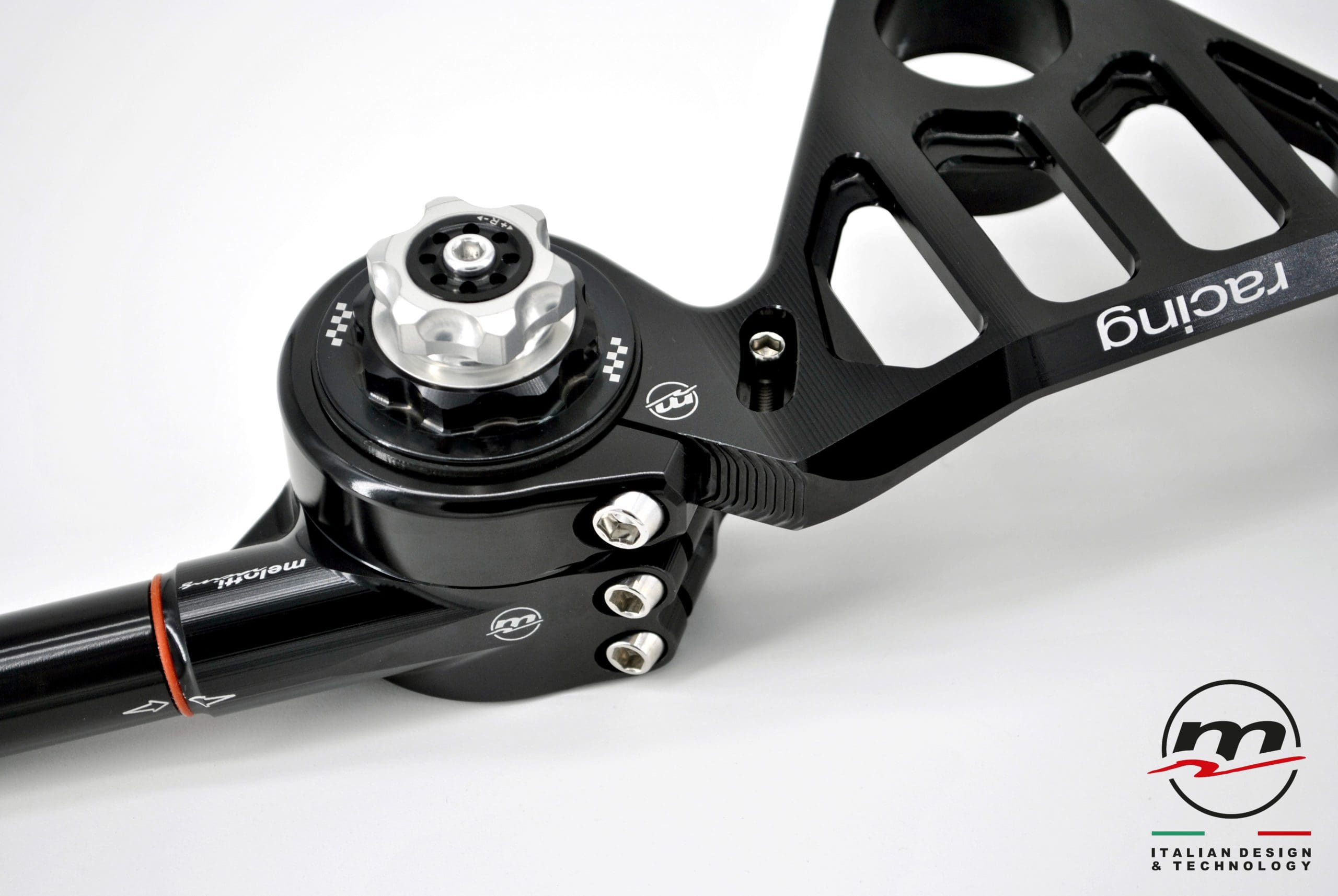

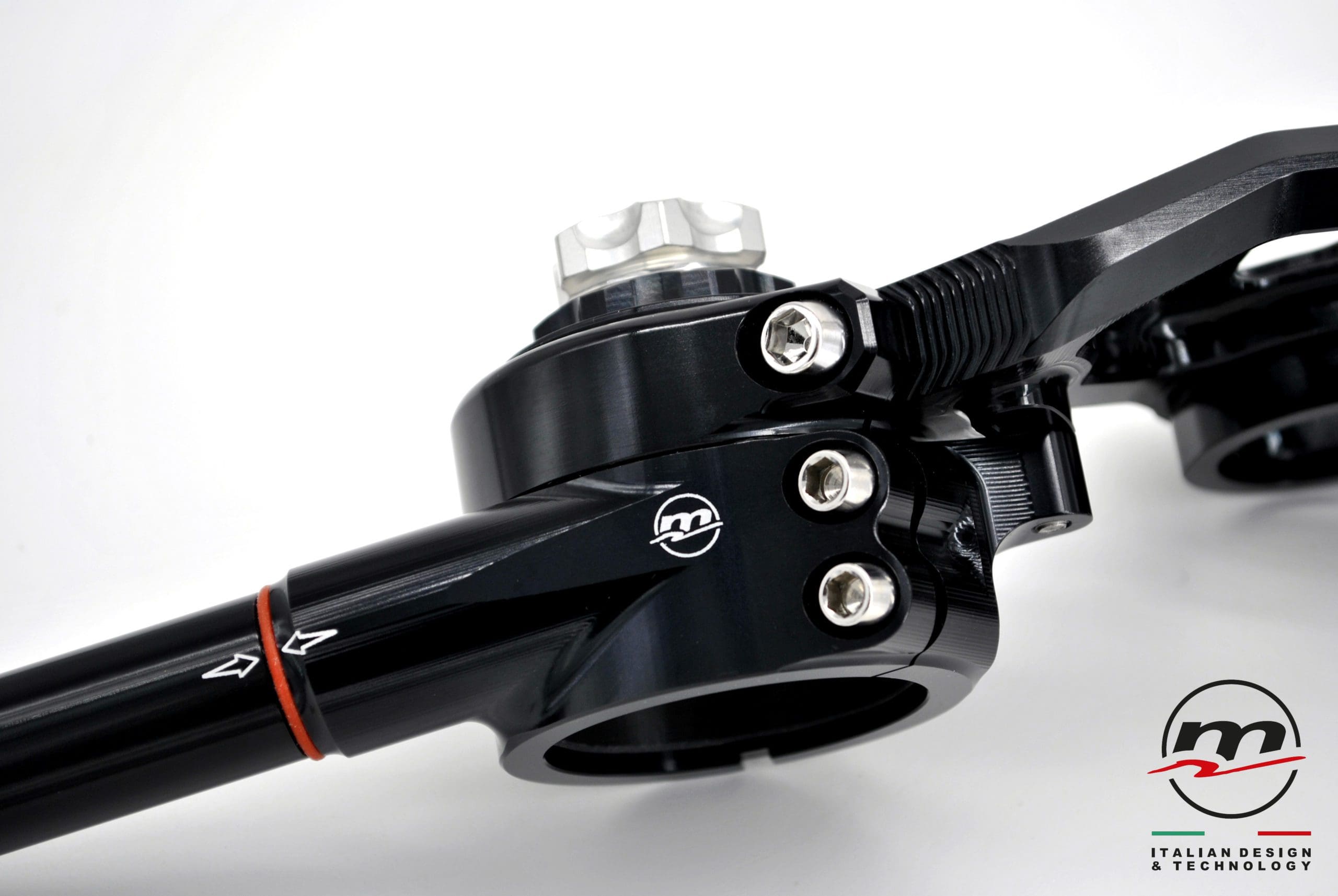

-As in use in modern GP and SBK, an allen key binds the handlebars and top fork bridge allowing a continuous rotation of 14 ° of the handlebars, from the original opening to the racing one. This solution gives a further advantage in terms of safety for the driver and facilitates the set-up operations in the box both in the case of disassembly of the forks (the handlebars remain bound to the top fork bridge)
and for adjusting the handlebars opening.
-We have adopted a GP-type bracelet-bar front coupling system (cone-shaped) to obtain a high rigidity and a minimum external encumbrance. -This choice offers, as a further plus, the possibility to use the entire length of the bar for the assembly of the controls.

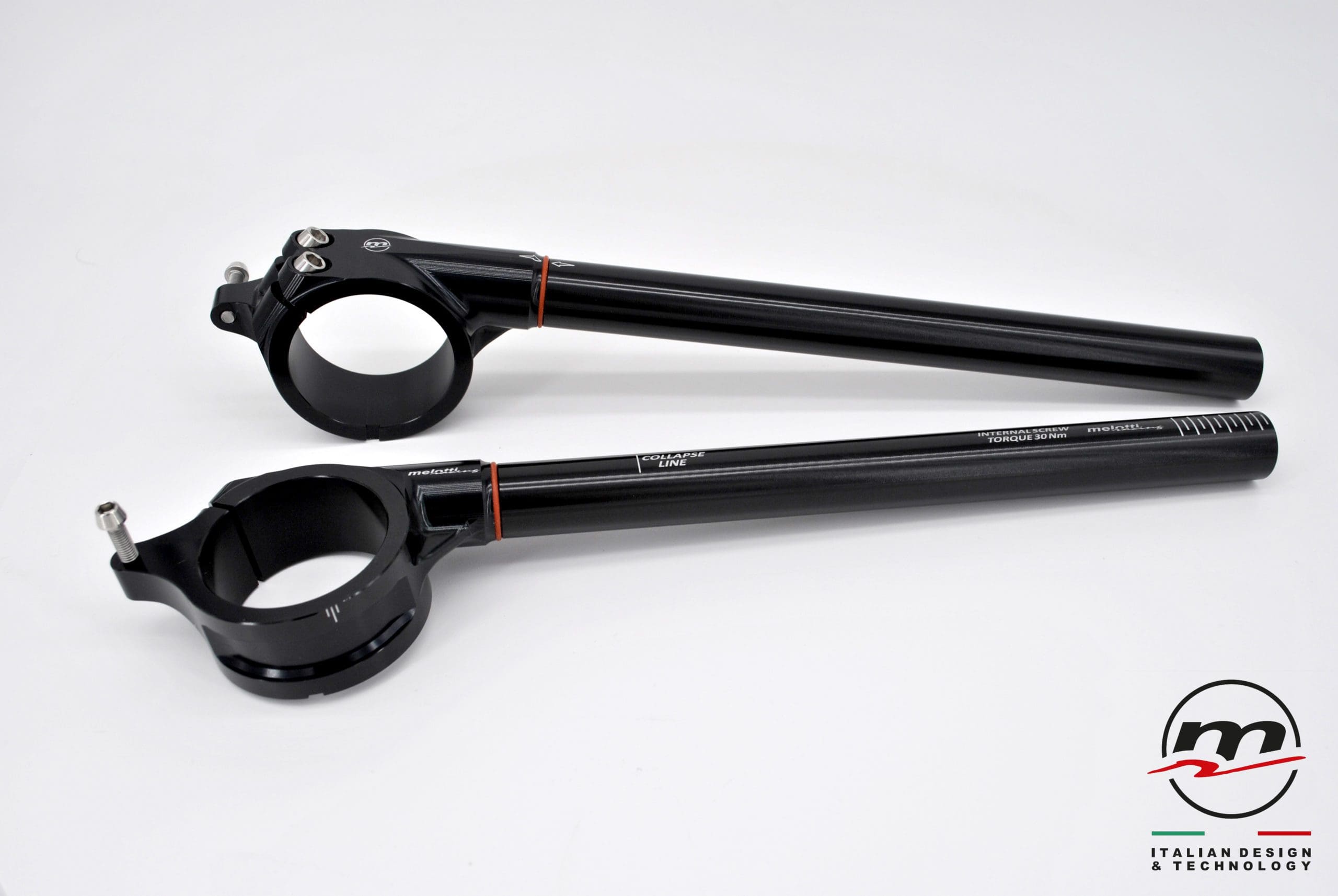

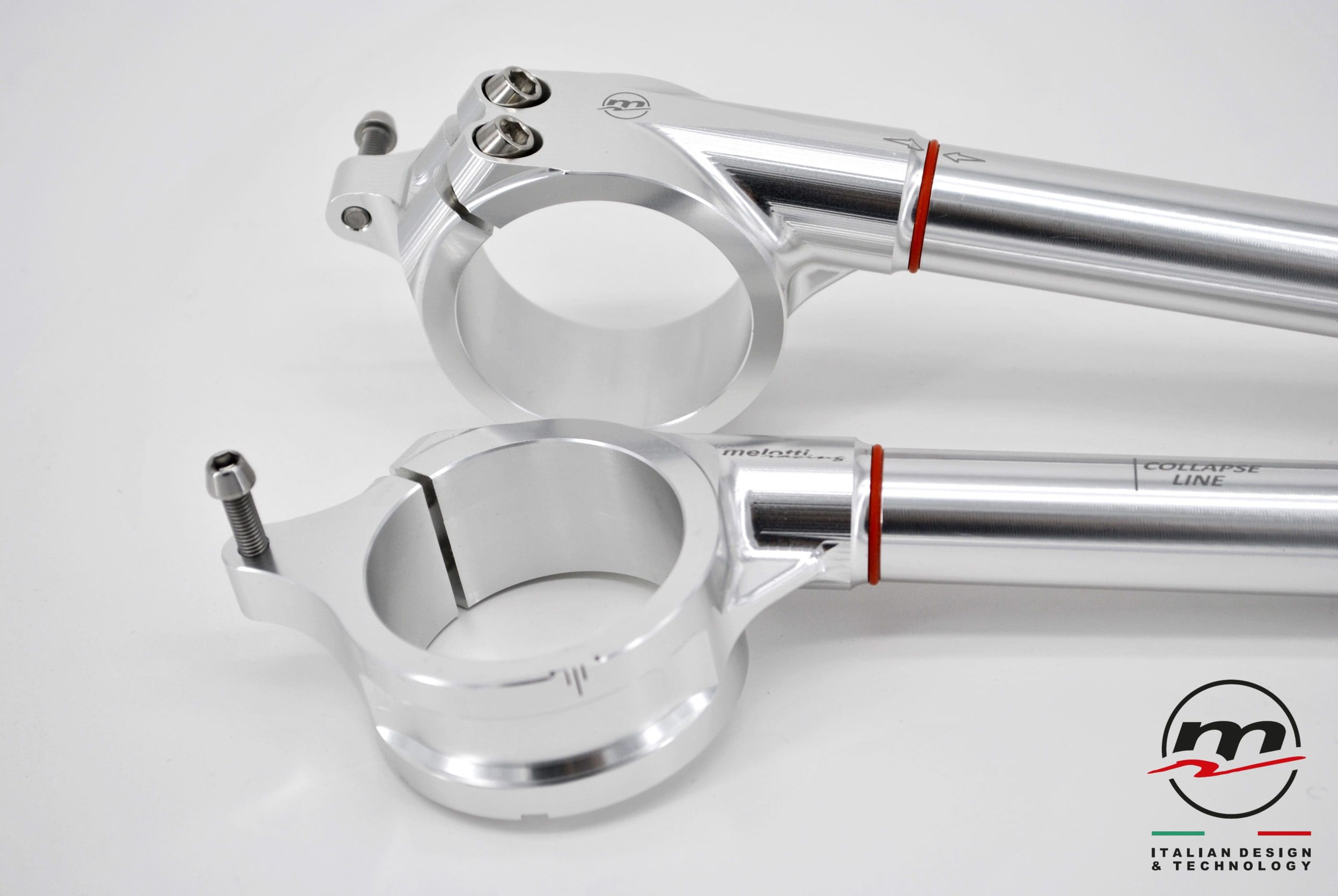

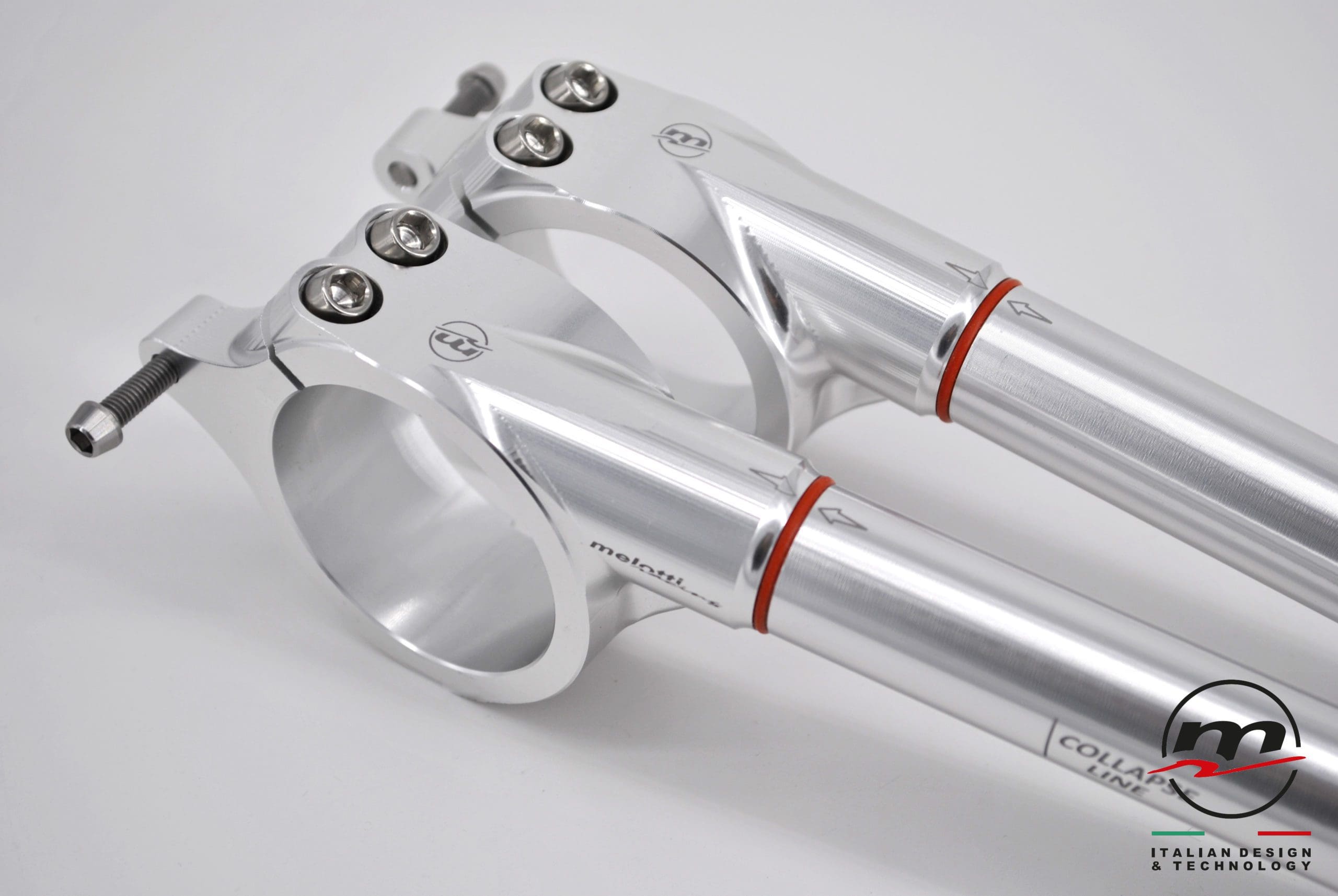

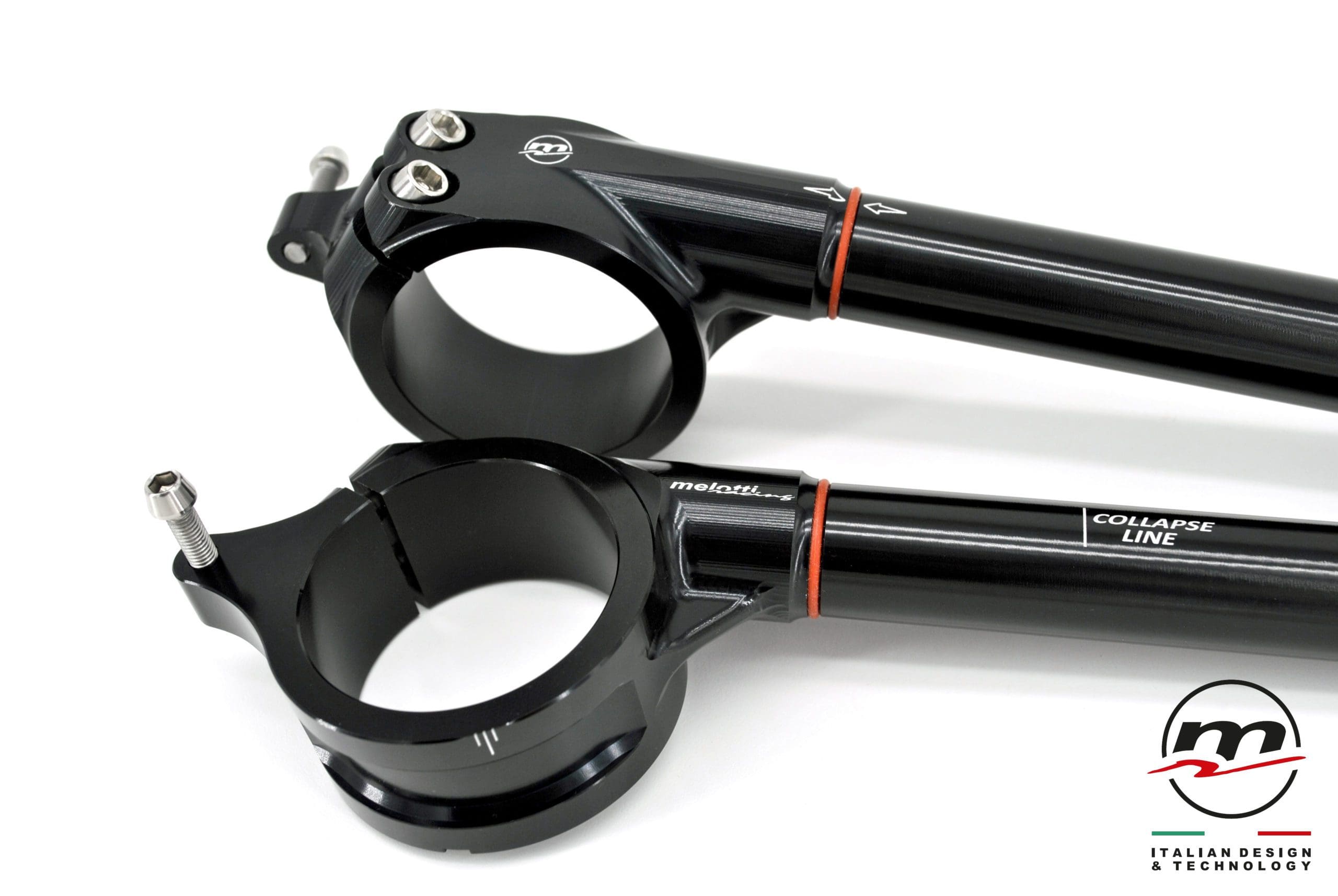

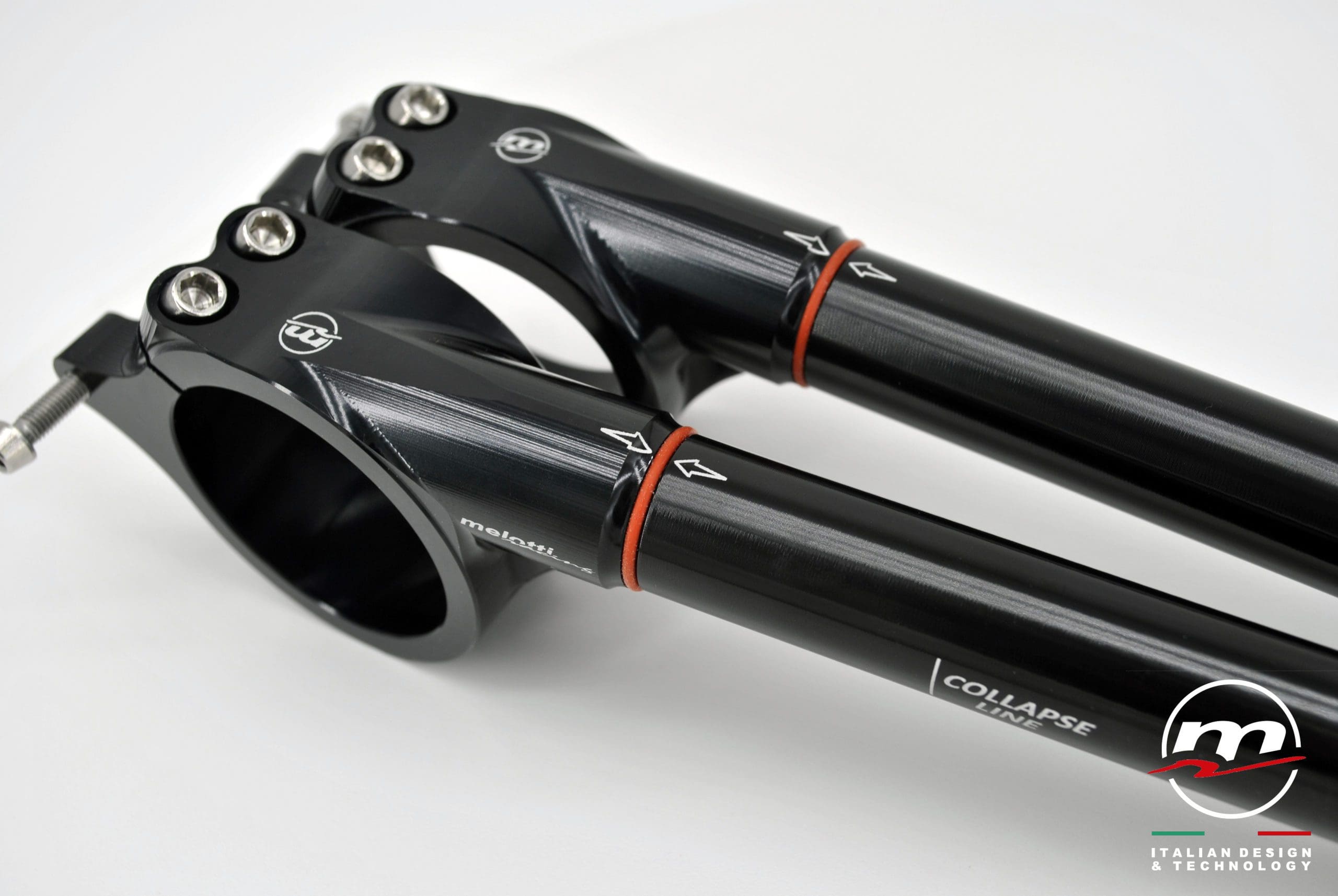

-Predetermined collapse section to avoid, in case of break of the bar due to a fall, the overloading of the fork sleeve which would irretrievably damage the internal hydraulics too.
-The handlebar is also designed with an anti-rotation and anti-slip system. This solution guarantees maximum safety and allows the quick and precise positioning of levers and buttons for teams that use the pre-assembled controls on the bars, whenever it’s necessary to disassemble the bar from the bracelet after a fall.

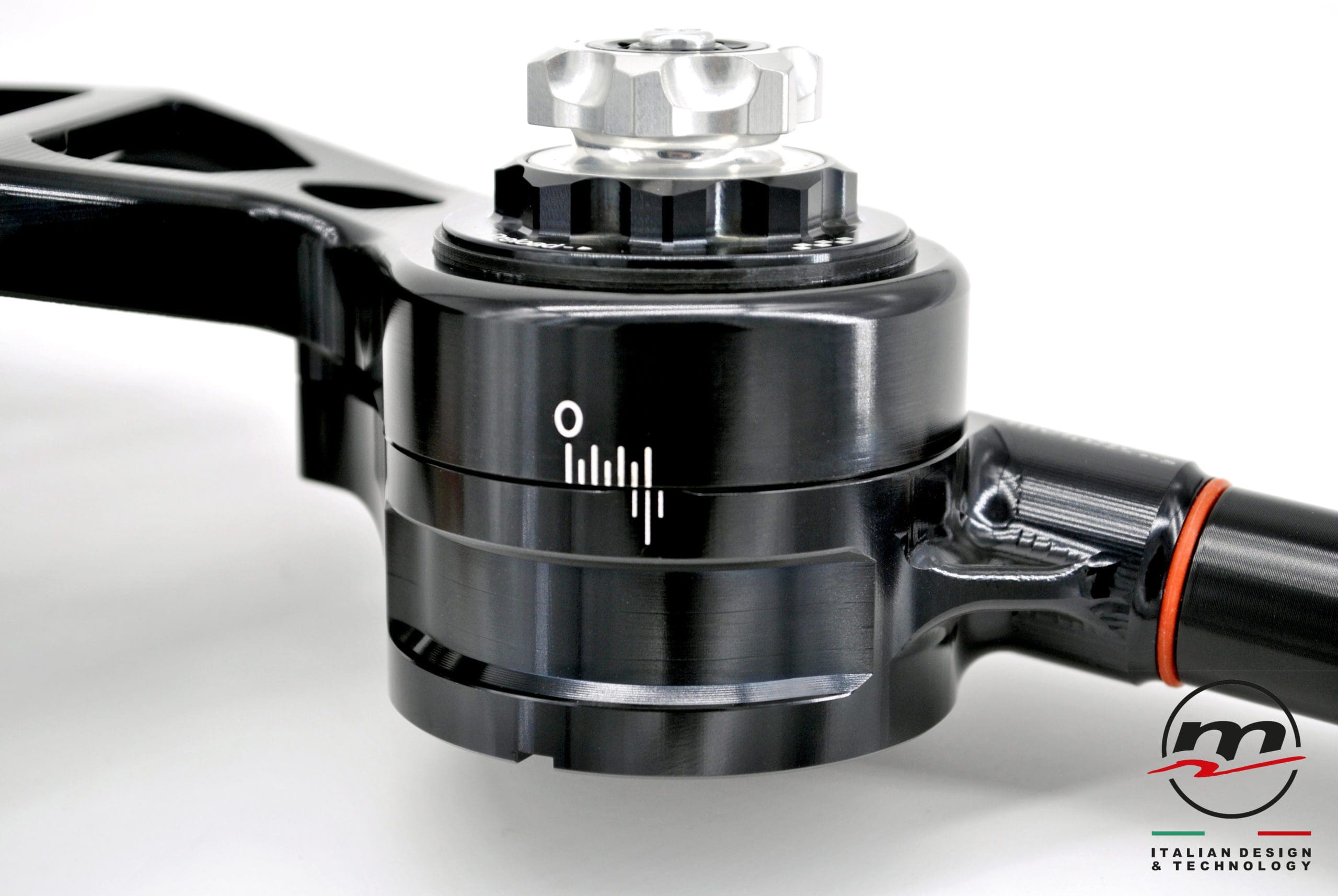

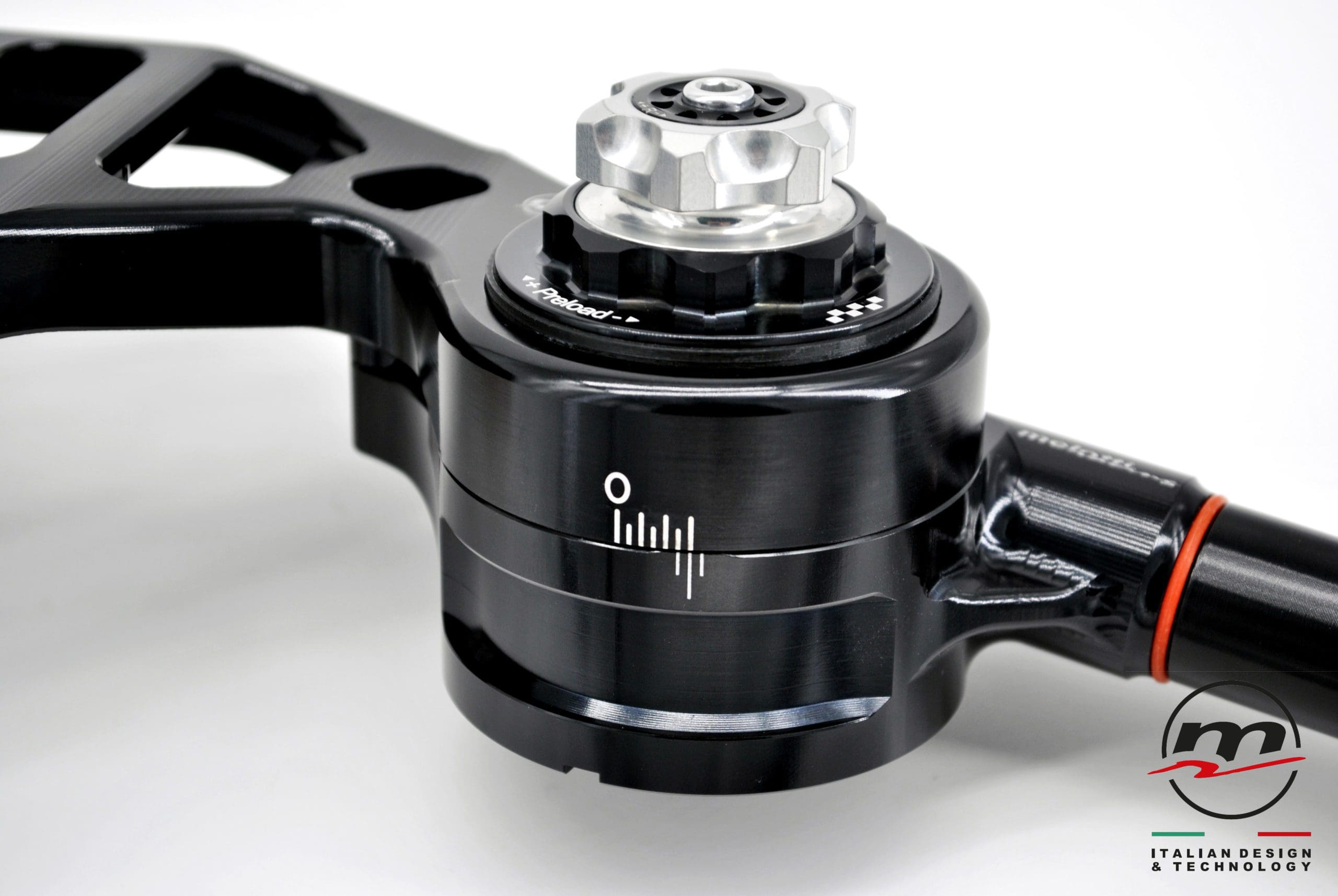

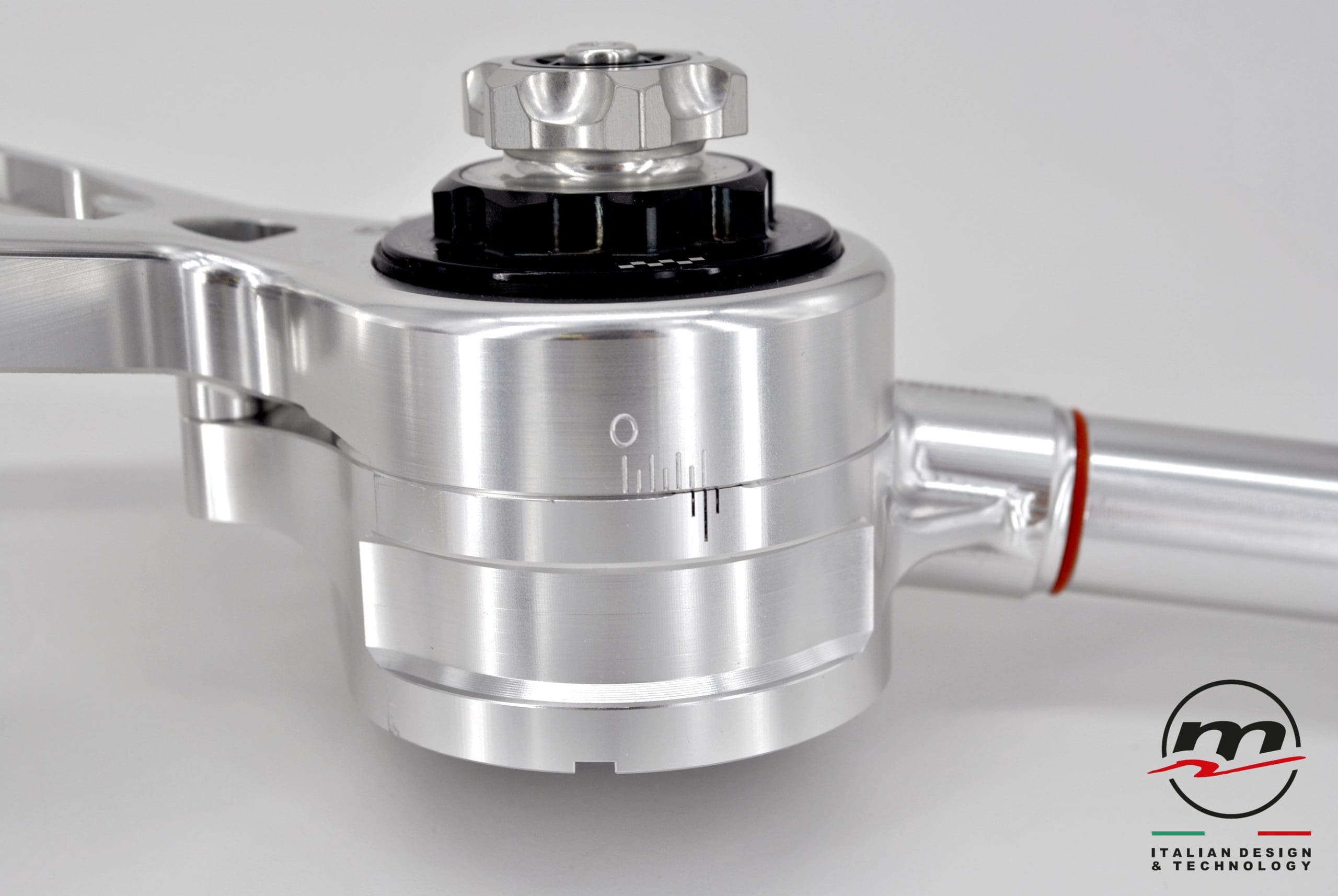

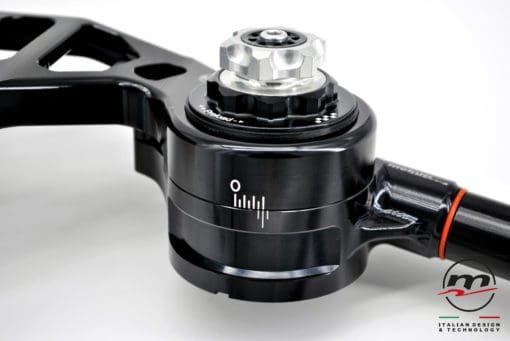

-Vernier to adjust the opening angle of the handlebars. The combined use of our GP handlebars with our top yoke makes the adjustment extremely easy and quick without the use of special masks.

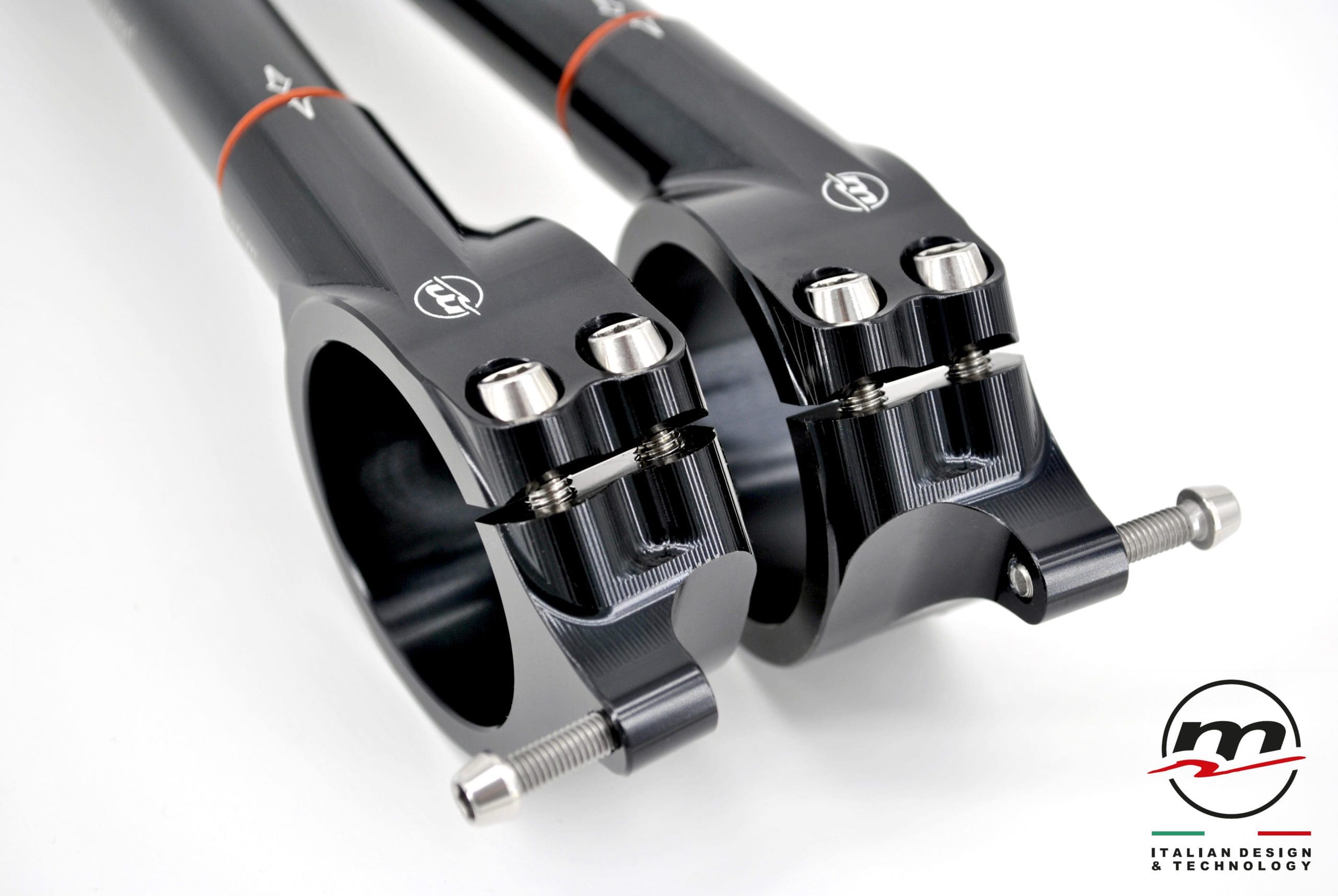

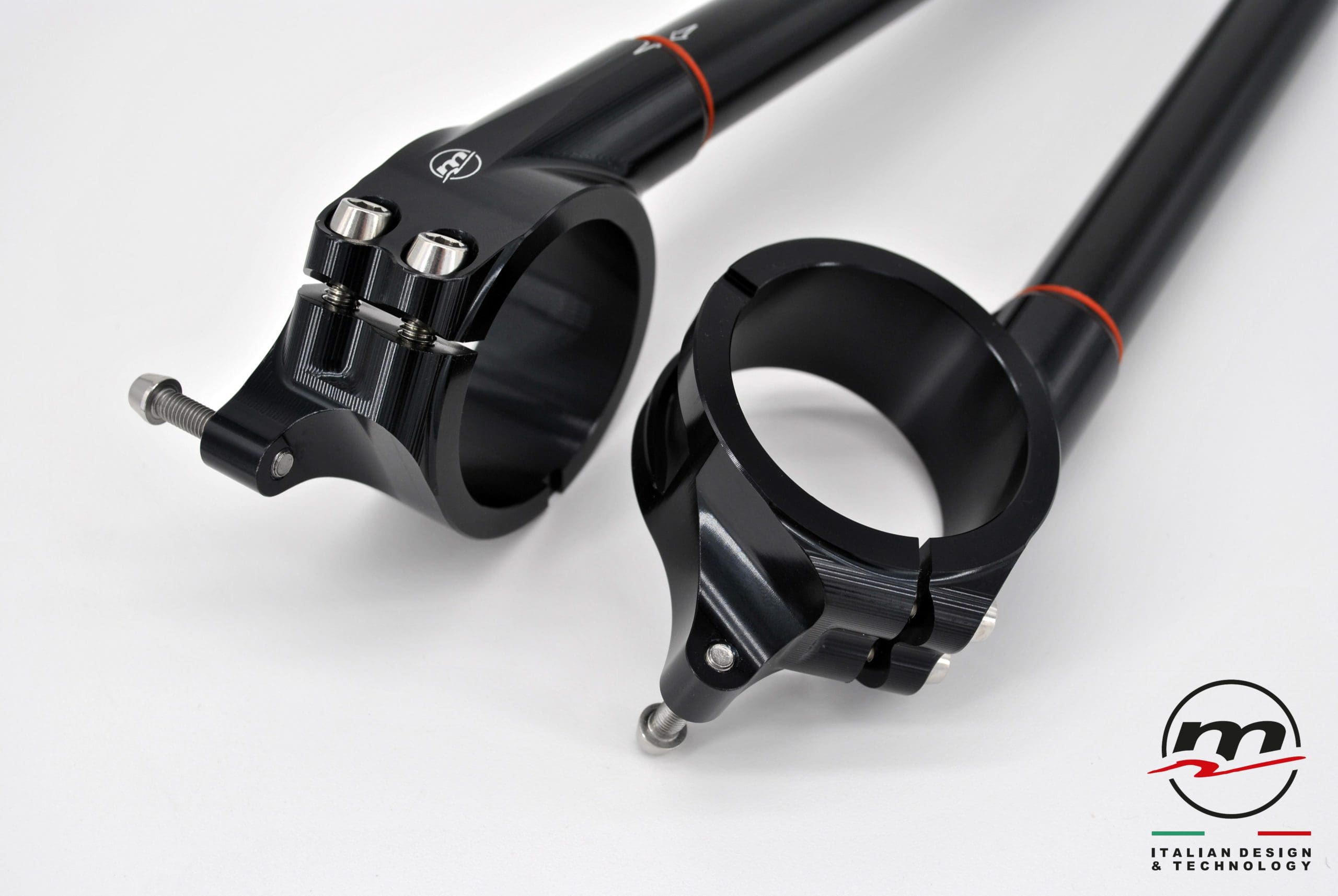

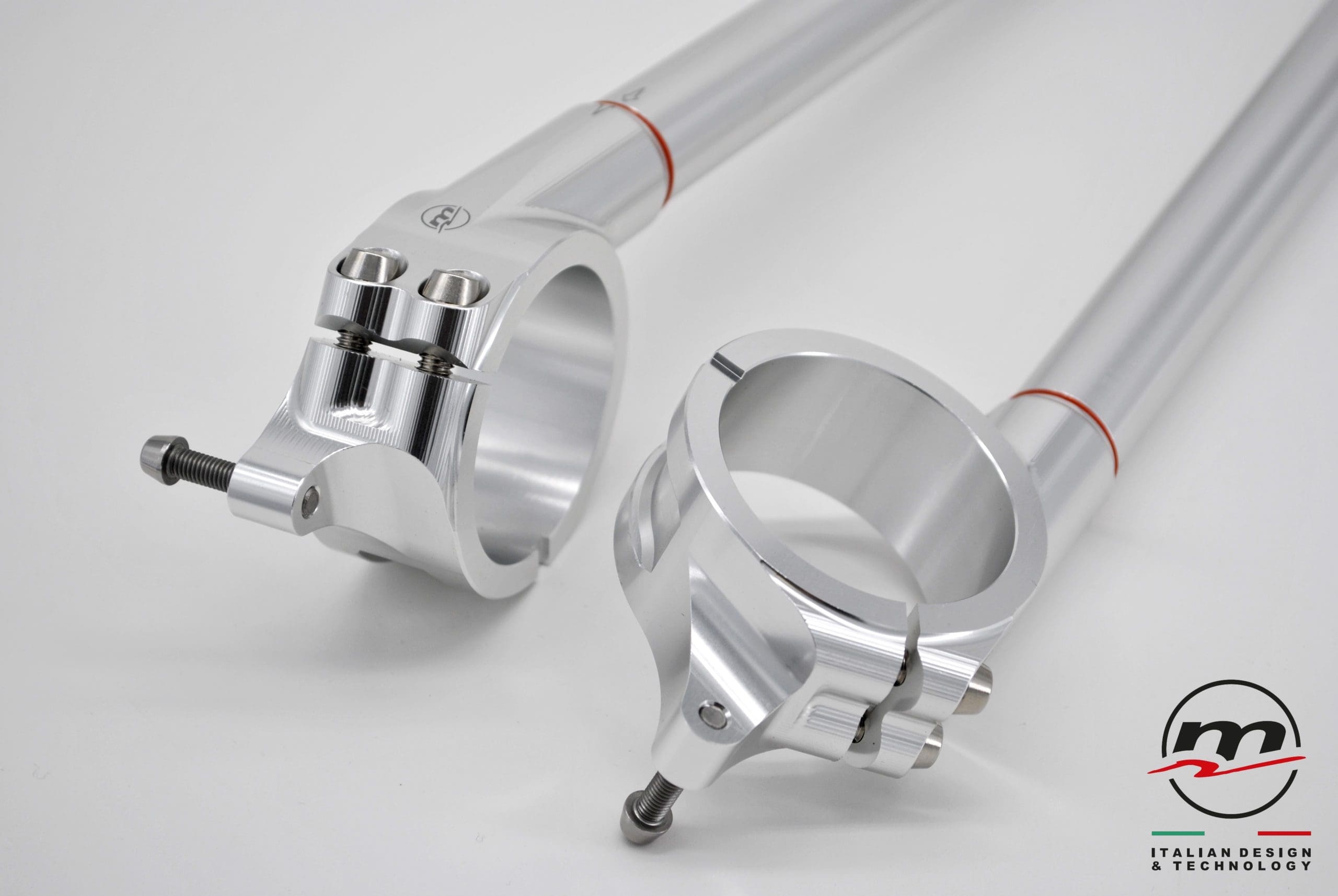

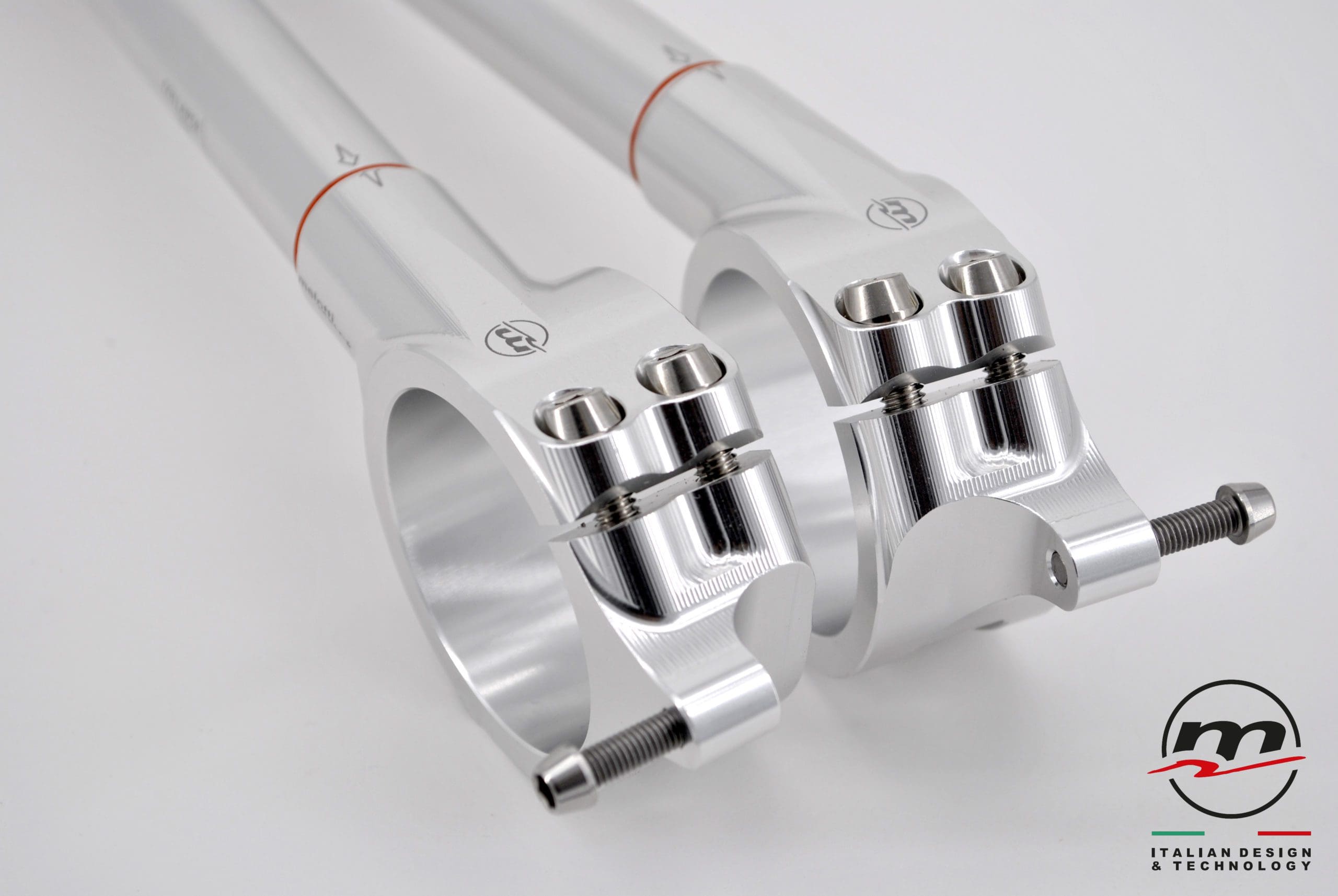

-Two stainless steel screws for fastening the bracelet.

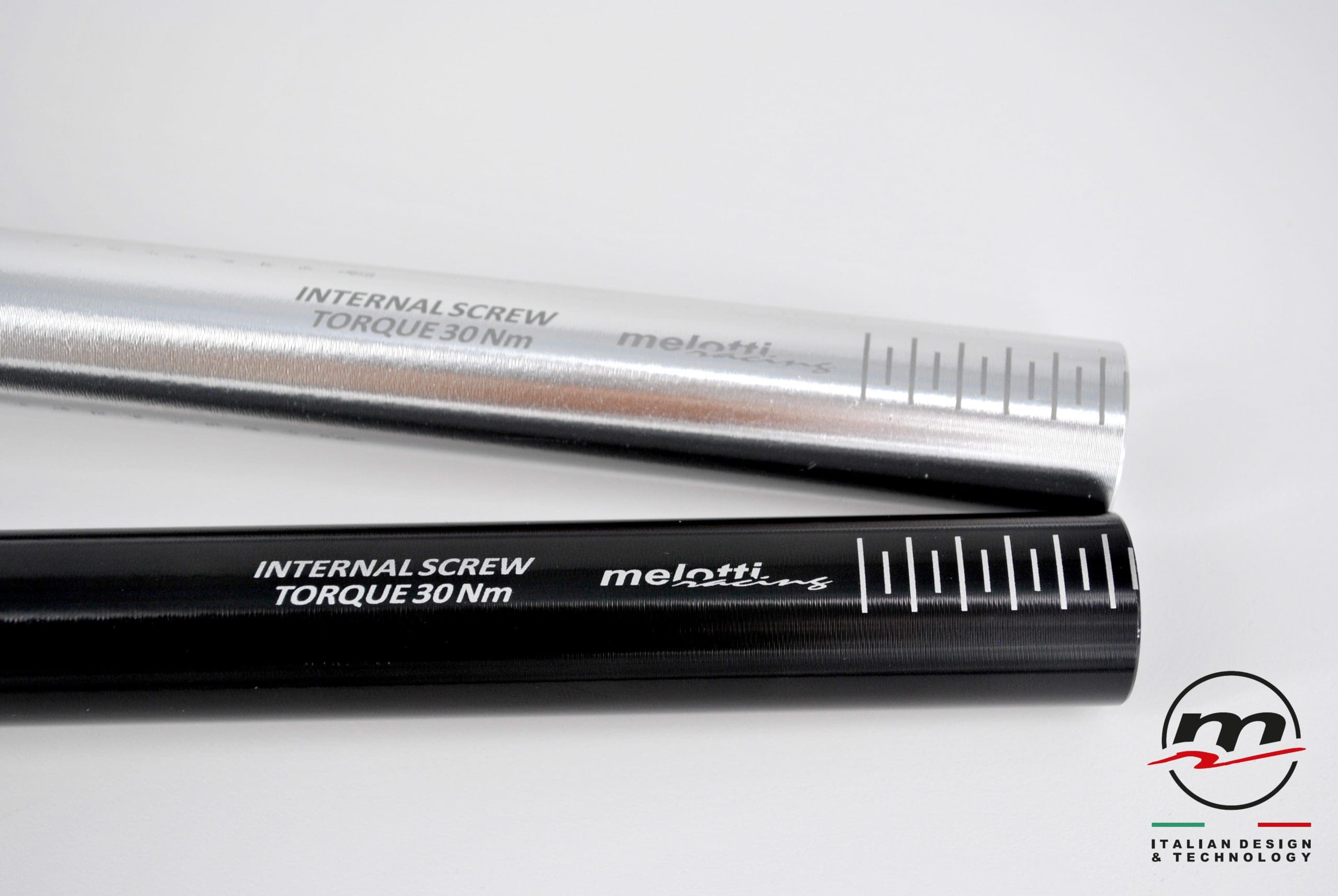

-A vernier on the outer end of the bar is helpful in case you need to shorten its length.

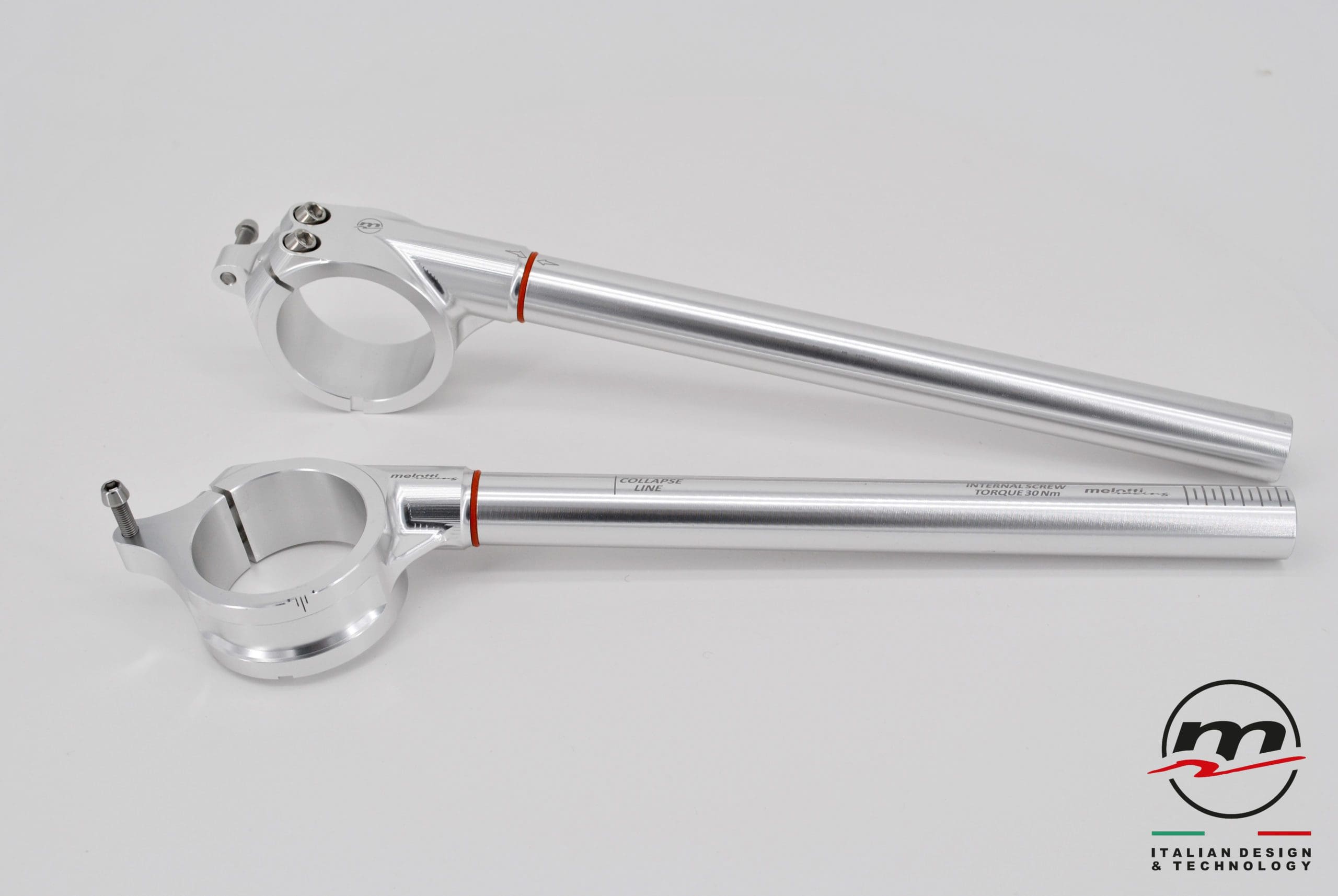

Main dimensional features:
-Angle of inclination: 7°
-Offset advancement: 20 mm
-Tube (bar) length: 240 mm
-Exploitable length: 240 mm
-Tube section: ext. diam. 22 mm – int. diam. 16.5 mm
-For forks diam. 51 mm
Available anodized in black and natural color.
