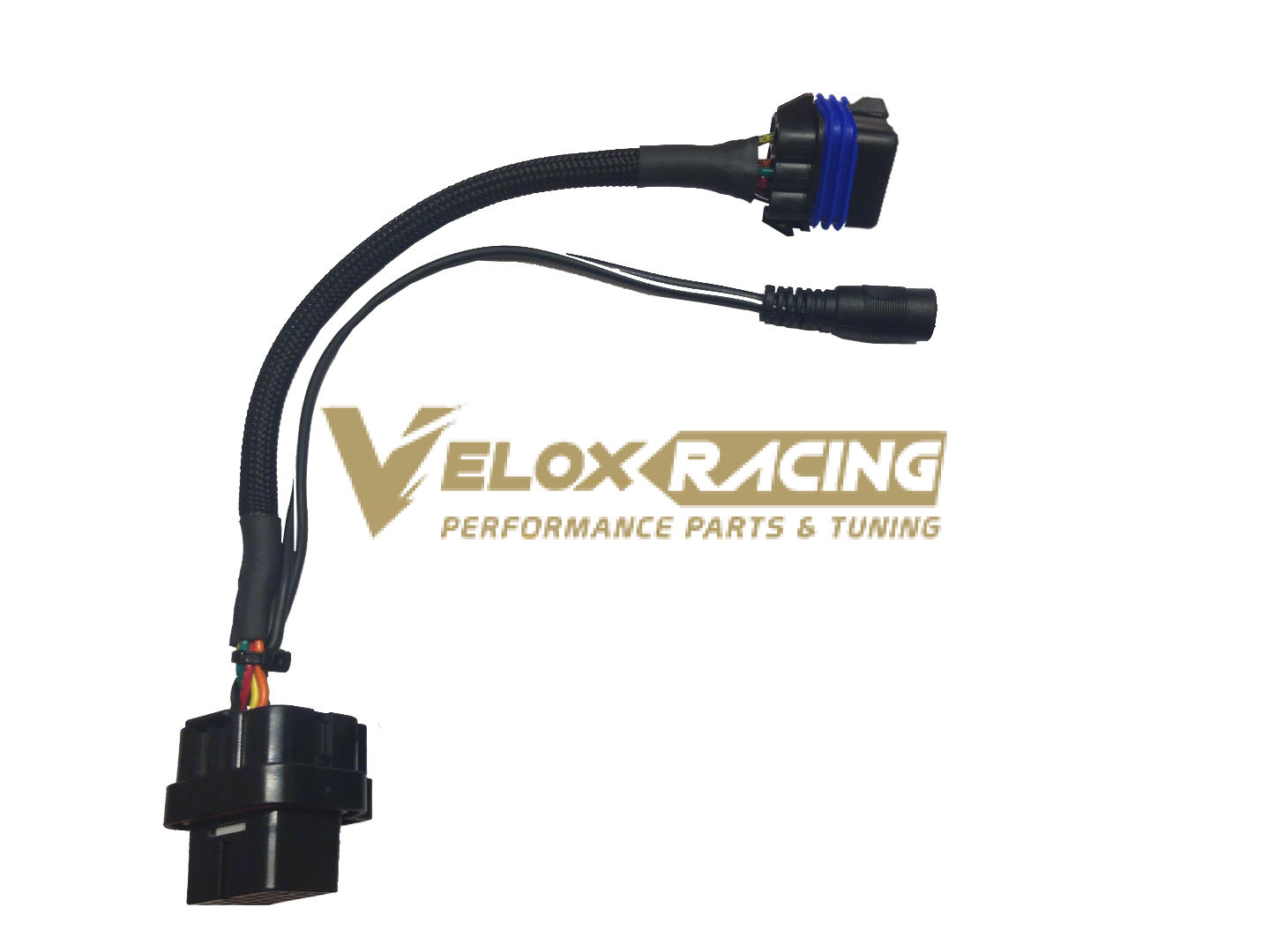

FTecu FlashTune Replacement Bench Harnesses

Description

These FTecu replacement bench harnesses are for bench flashing ECU’s away from a bike, or where you do not have power on the bike and need mains power.

They are ideal for dyno tuner and motorcycle shops who have many customers requiring ECU Flashed and don’t wish to stock and sell full bike kits.

You will need the following to use this FTecu FlashTune bench flash harness

• FTecu FTdatalink cable (6 Pin Datalink for 4 Pin USB Types 1 -20) or (4 Pin Datalink for 4 Pin Cables)
• FTecu power supply unit
• Available FTecu flashtune ECU license – you can buy more FTecu ECU licences here

6 Pin USB Type 1:

• 08-15 Yamaha R6
• 09-15 Yamaha V-Max
• 12-13  Yamaha XT1200
• 07-08 Yamaha R1

6 Pin USB Type 2:

• 09-14 Yamaha R1

6 Pin USB Type 3:

• 08-15 Suzuki GSXR 600
• 08-15 Suzuki GSXR 750
• 07-15 Suzuki GSXR 1000

6 Pin USB Type 4:

• 04-07 Suzuki GSXR 600
• 04-07 Suzuki GSXR 750
• 05-06 Suzuki GSXR 1000
• 05-08 Suzuki SV1000

6 Pin USB Type 5:

• 08-15 Suzuki GSX1300 Hayabusa
• 2016 Suzuki GSXS 1000

6 Pin USB Type 6:

• 06-14 Yamaha FZ 1

6 Pin USB Type 7:

• 11-13 Yamaha FZ 8

6 Pin USB Type 8:

• 05-08 Kawasaki ZX6/636
• 06-08 Kawasaki EX/ER 650

6 Pin USB Type 9: (discontinued, use the FTDL cable for this bike)

• 09-12 Kawasaki ZX6

6 Pin USB Type 10:

• 13-14 Kawasaki EX300

6 Pin USB Type 11:

• 02-07 Suzuki GSX1300 Hayabusa
• 03-04 Suzuki GSXR 1000

6 Pin USB Type 12:

• 13-14 Kawasaki ZX 636

6 Pin USB Type 13:

• 2013 Yamaha XT1200 PN -30, -70

6 Pin USB Type 14:

• 06-07 Yamaha R6
• 2013 Yamaha XT1200 PN -00, -40, -50, -80

6 Pin USB Type 16:

• 2014 Yamaha XT1200 (US)
• 2014 Yamaha FZ09/MT09
• 2015 Yamaha FJ09
• 2016 Yamaha XSR-900

6 Pin USB Type 17:

• 03-04 Kawasaki ZX6/636
• 06-08 Kawasaki EX650

6 Pin USB Type 18:

• 2015+ Yamaha R1, R1M, R1S
• 16-17 Yamaha FZ/MT-10
• 2017+ Yamaha R6

6 Pin USB Type 19:

• 2015 Yamaha FZ-7
• 2021 Yamaha YZF R7

6 Pin USB Type 20

• 2017+ Suzuki GSXR1000 & GSXR1000RR

6 Pin USB Type 23

• 2017+ Kawasaki Z900
• 2019+ Kawasaki ZX636

6 Pin USB Type 24

• 2020 Suzuki Katana

6 Pin USB Type 25

• 2023 Kawasaki Ninja 400

 4 Pin USB Type 1:

• 2016 Yamaha YXZ1000R * compatible with SportShift models

4 Pin USB Type 2:

• 07-10 Suzuki SV650

4 Pin USB Type 3:

• 09-16 Yamaha YFZ450r ATV

4 Pin USB Type 4:

• 11-15 Kawasaki ZX-10r
• 12-17 Kawasaki ZX-14r

4 Pin USB Type 5:

• 15-19 Kawasaki H2
• 2016+ Kawasaki ZX-10r

4 Pin USB Type 6:

• 06-11 Kawasaki ZX-14r

4 Pin USB Type 7:

• 08-10 Kawasaki ZX-10r

4 Pin USB Type 8:

• 15-17 Yamaha R3

4 Pin USB Type 9:

• 2017 Honda CBR1000R

4 Pin USB Type 13:

• 2018 Yamaha Wolverine X4

2 Pin USB Type 01:

• 2020 – 2022  Yamaha YZF R1B3L
