Description

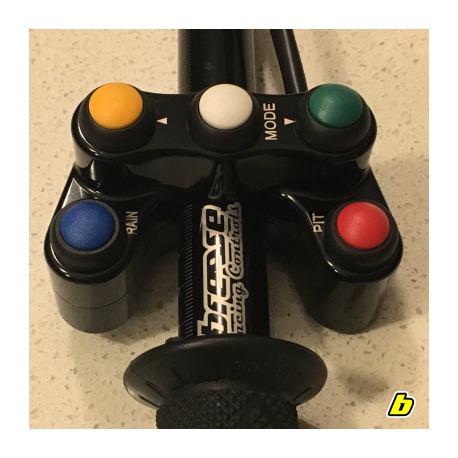

If you are looking for the LH mode switch like used on the WSBK race bikes, these are the ones. This is pure WSBK exotica. This mode switch is for race only use and eliminates the stock LH switch group entirely.

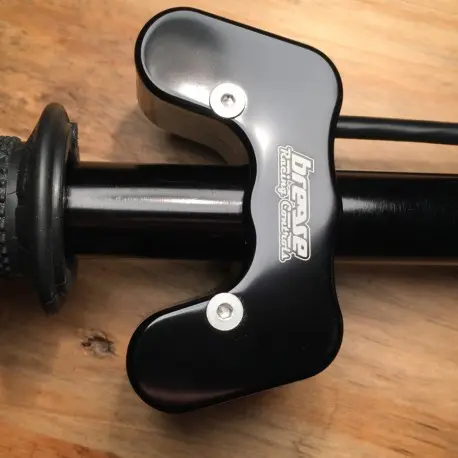

The switch body is made from 6061 Aluminium, anodised black, laser etched. Buttons are waterproof, navigation buttons are momentary contact type and the Pit limiter and Rain Light are latching type.

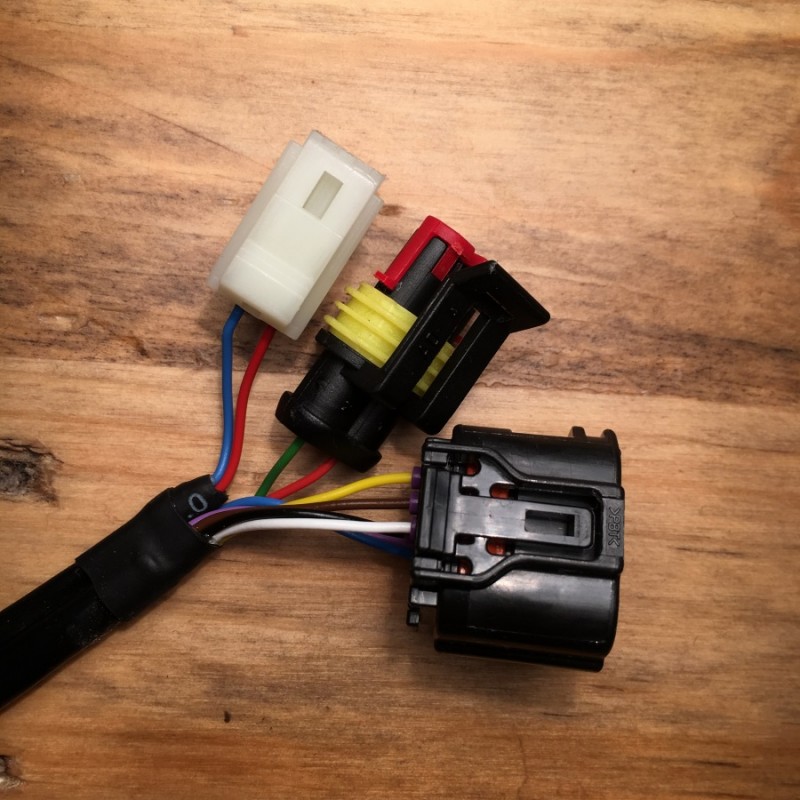

The wiring is plug and play. You can remove your street LH switchgroup and replace it with this unit. No wire cutting or splicing is required.

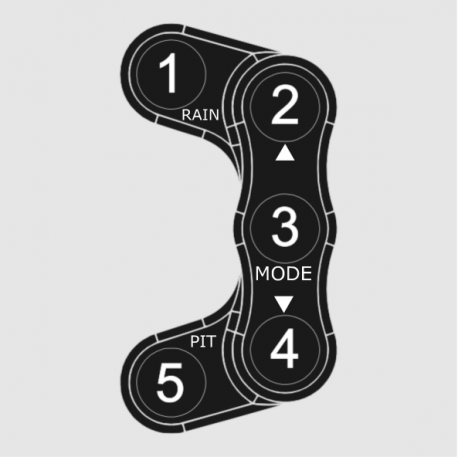

Button 1 –Blue is RAIN light (wire you own(Latching Button)
Button 2 – Yellow up navigation
Button 3 – White is MODE like standard controls
Button 4 – Yellow down navigation
Button 5 –Grey is PIT limiter (Woolich 2 pin connector supplied) (Latching button)
Package includes a clutch switch loom.
This is a race only part, not for street!
Will require Woolich Tuned ECU kit
