Breese Racing Controls Yamaha R1 & R1M 5 Button Race Handlebar Switch Assembly Right Hand Side, Plug and Play

Description

If you are looking for the RH mode switch like used on the WSBK race bikes, these are the ones. This is pure WSBK exotica. This mode switch is for race only use and eliminates the stock LH switch group entirely.

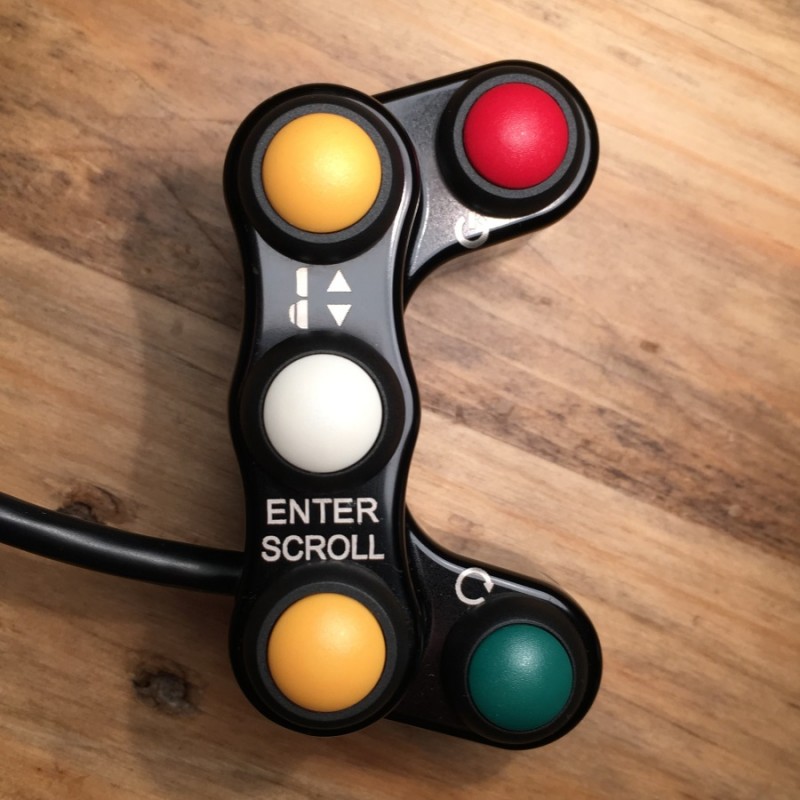

The switch body is made from 6061 Aluminium, anodised black, laser etched. Buttons are waterproof, enter and start buttons are momentary contact type and the Up/Down Selection and  On/Kill button are of latching type.

The wiring is plug and play. You can remove your street RH switchgroup and replace it with this unit. No wire cutting or splicing is required.

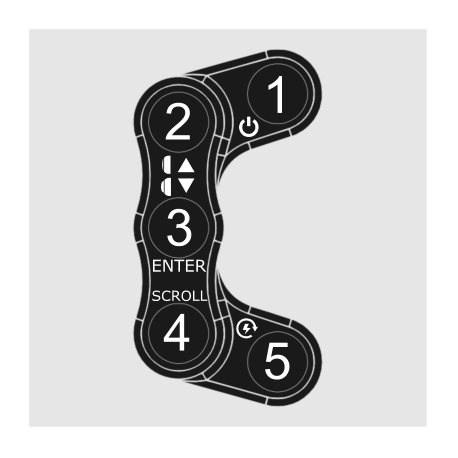

Button 1 – Red Run / kill (Latching Button)

Button 2 – Yellow Up/Down Selection  (Latching Button)

Button 3 –  White Enter

Button 4 – Yellow SCROLL (Latching Button)

Button 5 – Green Start

To scroll up button 2 (Up/Down Selection) needs to be depressed then button 4 (SCROLL)  is used to scroll down through the menu

To scroll down button 2 (Up/Down Selection) needs to be pressed then button 4 (SCROLL)  is used to scroll up through the menu

Enter is like pressing the scroll wheel.

Both right and left hand side OEM controls are very prone to failure, replace yours now to avoid disappointment!
