Description
If you are looking for the LH mode switch like used on the WSBK racers, you are in the right place. This is pure WSBK exotica. This mode switch is for race only use and eliminates the stock LH switch group entirely.

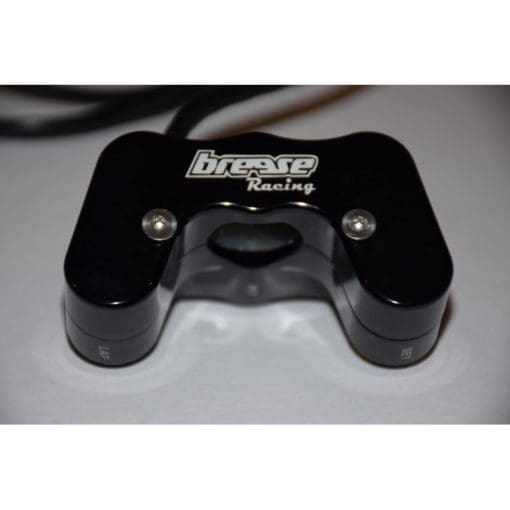

The switch body is made from 6061 Aluminium, anodised black, laser etched. Buttons are waterproof, momentary contact type and the Pit limiter is latching type. The wiring is plug and play. You can remove your street LH switchgroup and replace it with this unit. No wire cutting or splicing is required.

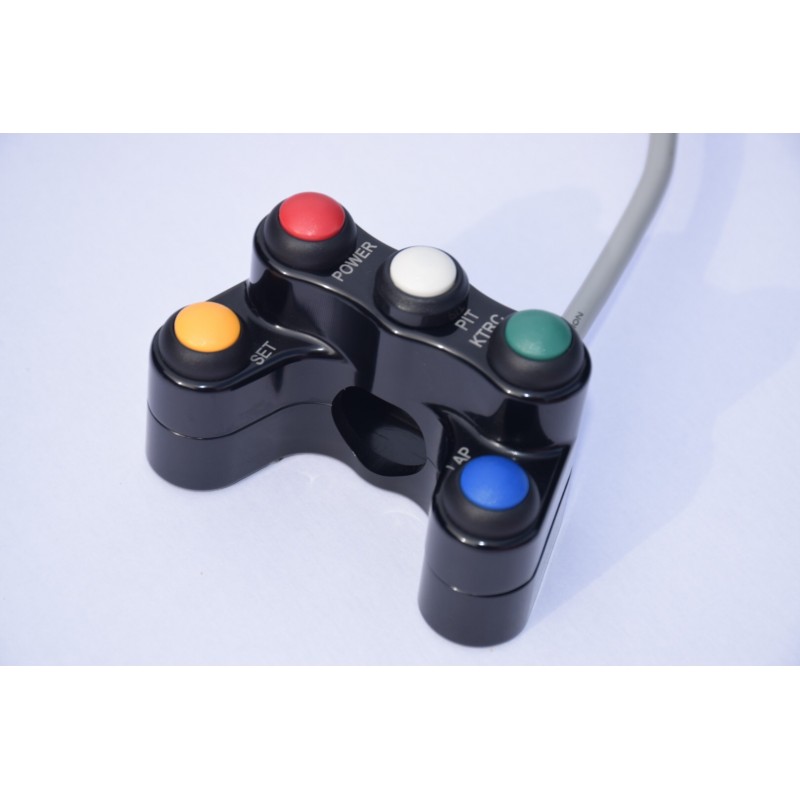

Yellow is SET (originally on the RHS controls), Blue is LAP (originally flasher) Red is Power mode, Green is KTRC mode and White is PIT speed limiter (originally indicator on kit ECU equipped bikes)

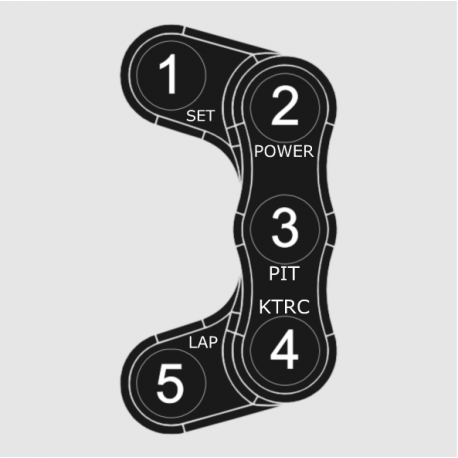

Button 1 –ย Yellowย is SET (originally on the RHS controls
Button 2 –ย Redย is Power mode
Button 3 –ย Whiteย is PIT speed limiter (originally indicator on kit ECU equipped bikes) (Latching switch)
Button 4 –ย Greenย is KTRC modeย
Button 5 –ย Blueย is LAP (originally flasher)
Package includes a clutch switch loom.
This is a race only part, not for street!
