Description
For ’17 RSV4 aPRC (all variants) and ’17 Tuono V4 1100 aPRC (all variants)
If you are looking for the LH mode switch like used on the WSBK racers, you are in the right place. This is pure WSBK exotica.
This mode switch is for race only use and eliminates the stock LH switch group entirely.
The switch body is made from 6061 Aluminium, anodised black, laser etched and the buttons are hard coated plastic

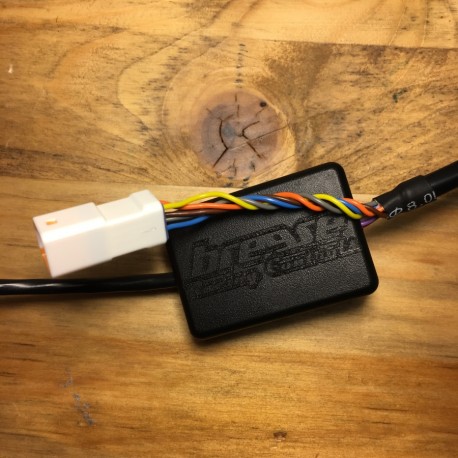

The wiring is plug and play. You can remove your street LH switchgroup and replace it with this unit. No wire cutting or splicing is required. This unit includes a CAN BUS interface module incorporatedย inline with the cabling (This is the same way the OEM switch units communicate with the motorcycle’sย ECU)
Note: The Up, down and PIT buttons have dual functionality, the secondary functions are activated by pressing the Shift button 7. When the shift button is out the primary functions are selected. This is necessaryย due to a large number of functions required to enable all OEM functions.

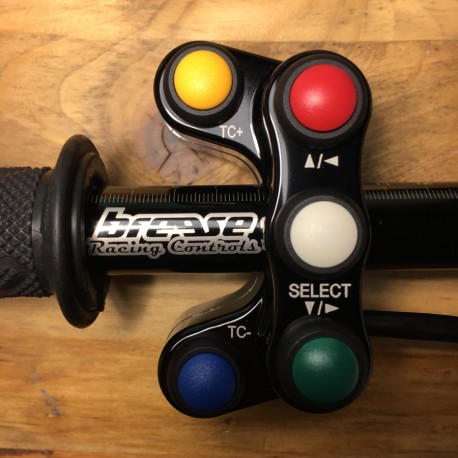

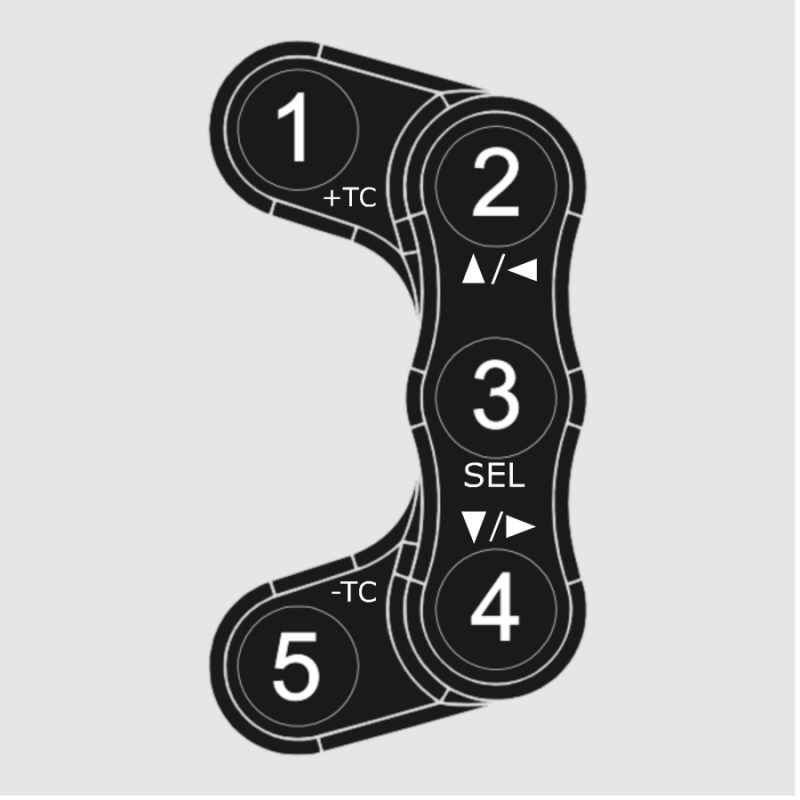

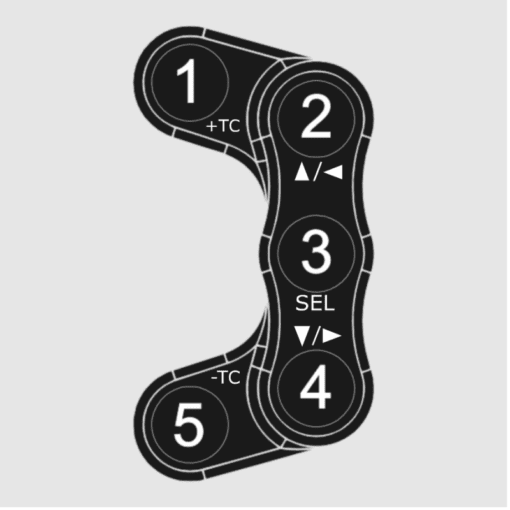

Button 1 –ย Yellowย TC+ like OEM aPRC flipper buttons
Button 2 –ย Redย Navigation up /ย navigation left (shift button needs to be pressed)
Button 3 –ย Whiteย Select (Enter) navigationย
Button 4 –ย Greenย Navigation down /ย Navigation Right (shift button needs to be pressed)
Button 5 –ย Blueย TC- like OEM aPRC flipper buttons

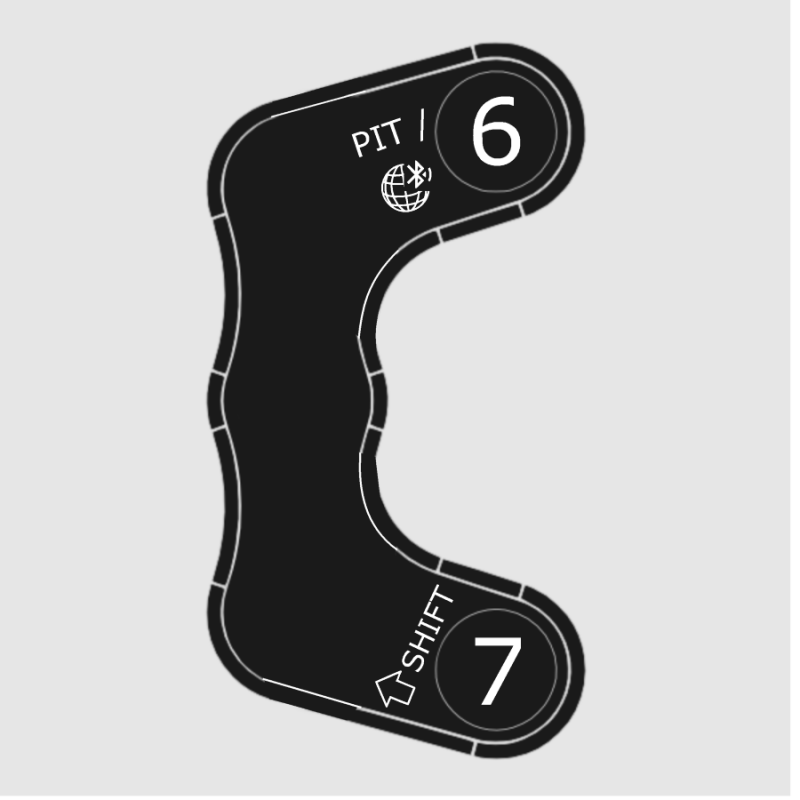

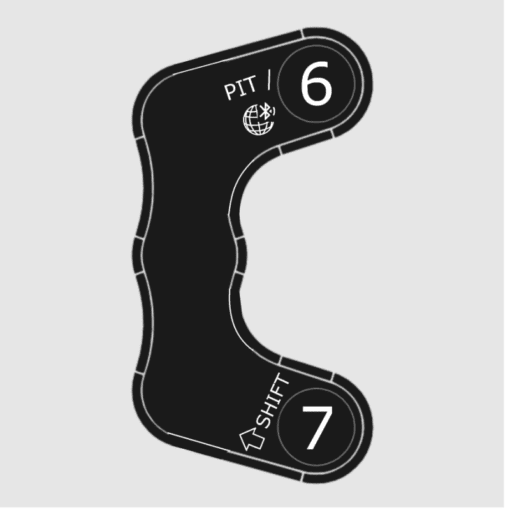

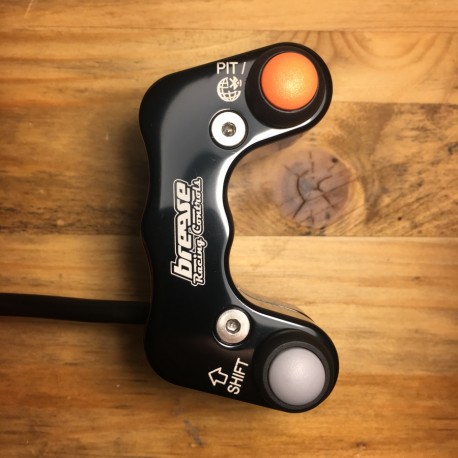

Button 6 –ย Orangeย PIT Limiter /ย V4-MP Connectย (shift button needs to be pressed)
Button 7 –ย Greyย Shift Enables secondary button functions (Latching Button)
This is a race only part, not for street!
