Description
For ’11-’16 RSV4 aPRC (all variants) and ’11-’16 Tuono V4 aPRC (all variants), Tuono V4 1100 aPRC (all variants)
If you are looking for the LH mode switch like used on the WSBK racers, you are in the right place. This is pure WSBK exotica.
This mode switch is for race only use and eliminates the stock LH switch group entirely.
The switch body is made from 6061 Aluminium, anodised black, laser etched and the buttons are hard coated plastic of the momentary contact type.
The wiring is plug and play. You can remove your street LH switchgroup and replace it with this unit. No wire cutting or splicing is required.

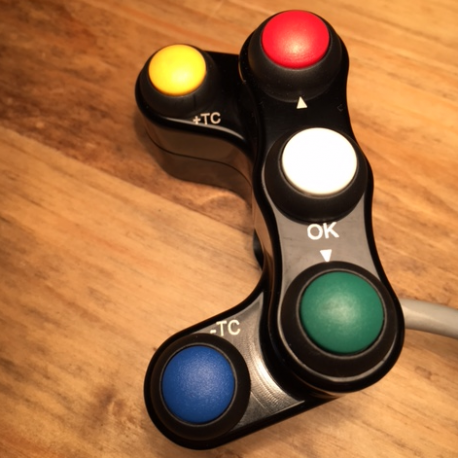

Yellow and blue are your TC buttons like standard aPRC controls. The other three are mode buttons scroll up (red) and down (green) are the top and bottom ones, and the middle (white) is ENTER just like pressing in on the standard MODE button

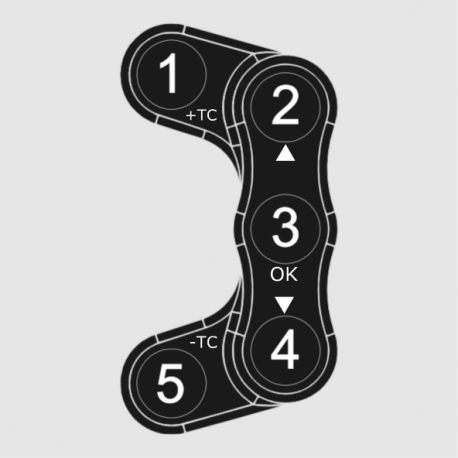

Button 1 –ย Yellowย TC+ like OEM aPRC flipper buttons
Button 2 –ย Redย Navigation up
Button 3 –ย Whiteย Ok/Enter Navigation
Button 4 –ย Greenย Navigation down
Button 5 –ย Blueย TC- like OEM aPRC flipper buttons
Note:ย This switch block is compatible with I2M Chrome Lite
This is a race only part, not for street!
